current location: HomeProductsProgrammable controller

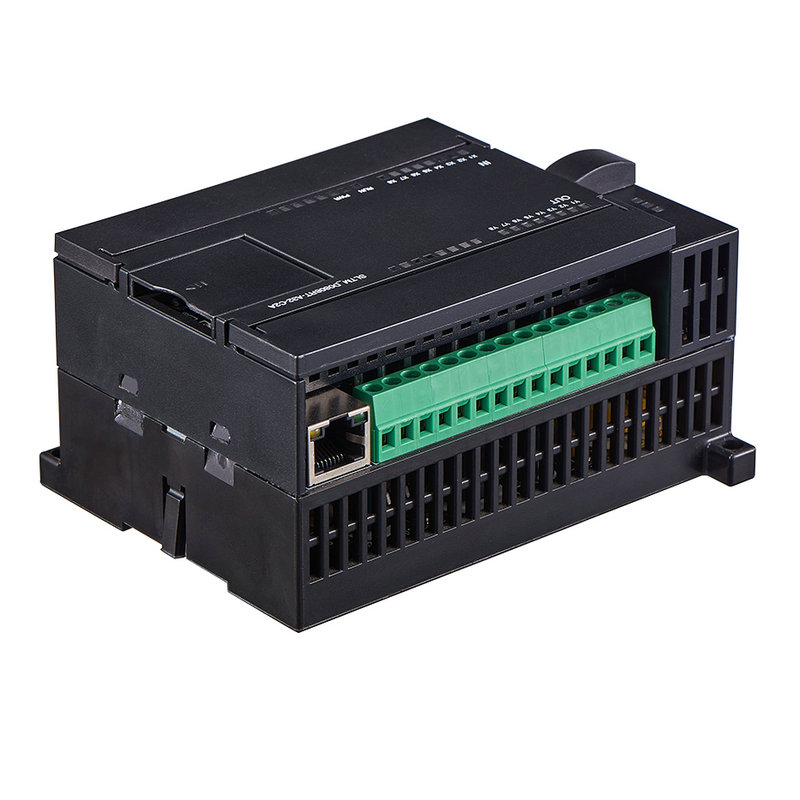

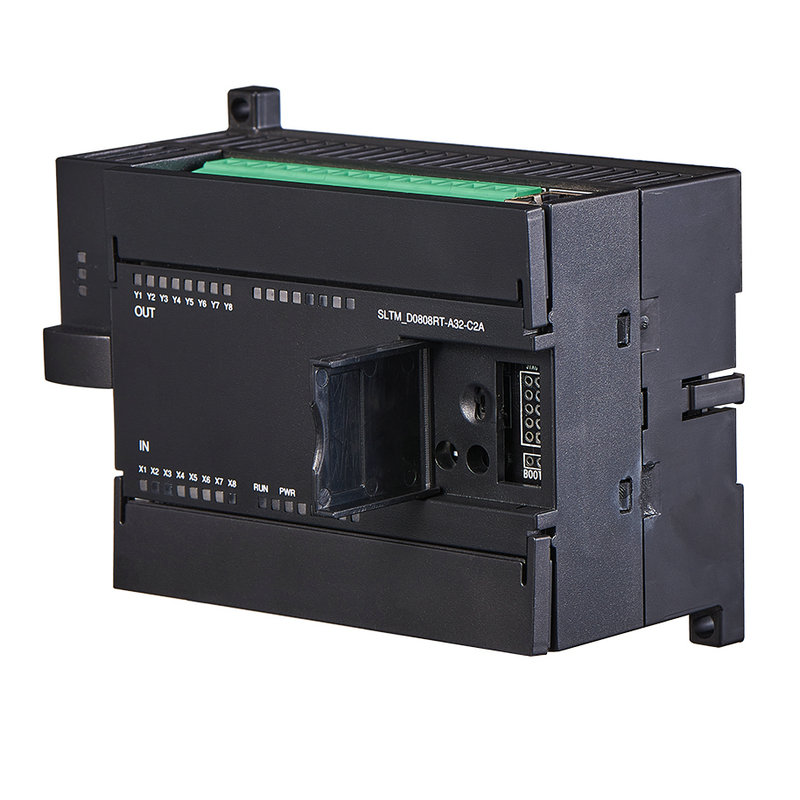

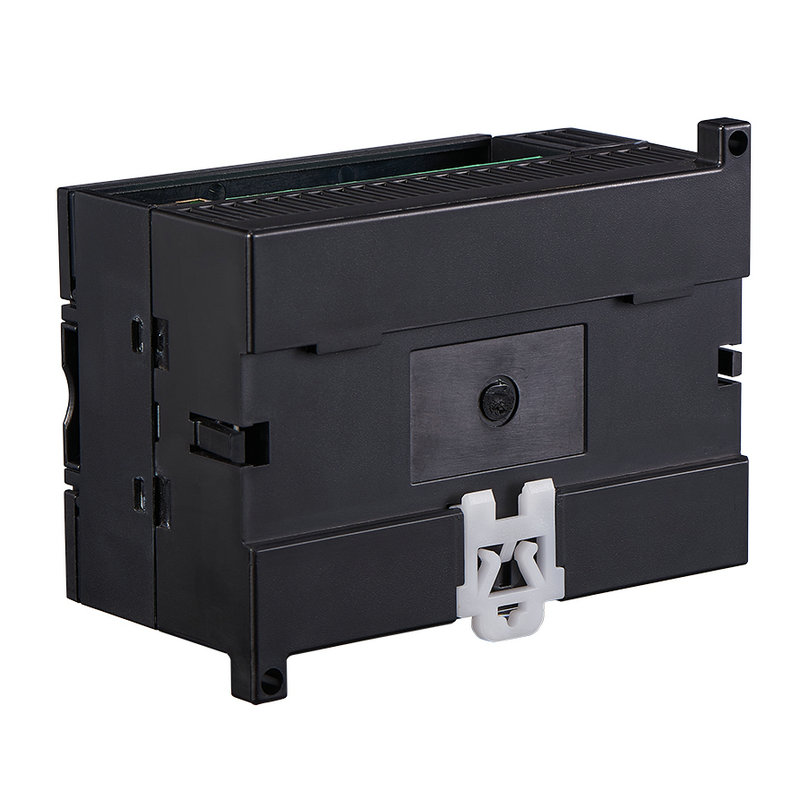

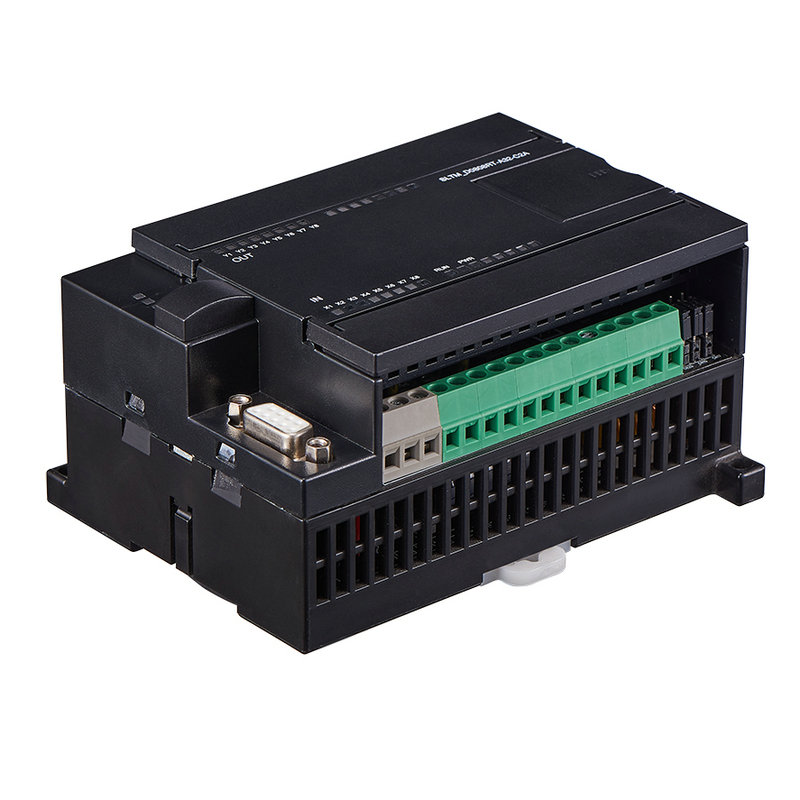

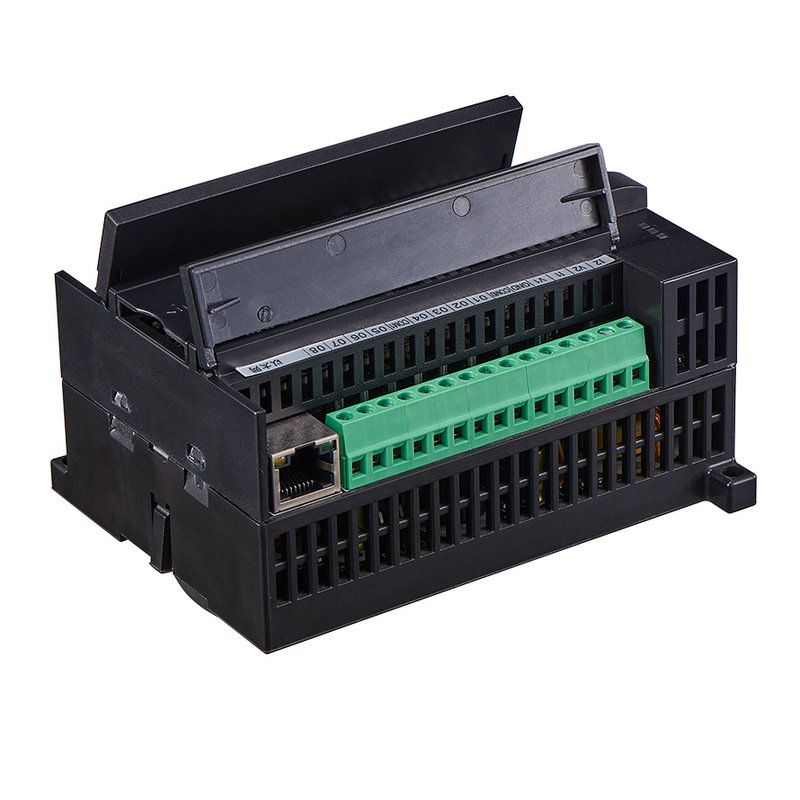

Box type SLTM-D0808RT-A32-C2A

Basic parameters：

model：Box type SLTM-D0808RT-A32-C2A

Dimensions: L, W, H：120*80*62mm
power supply：DC24V >1A
Switching input：8 DC24V NPN/PNP inputs
Switching Output：8 DC24V PNP output
analog input：3-channel 0-10V or 4-20mA input
analog output：1 voltage, 1 current output
Communication mode：2 RS485 MODBUS-RTU
                 1 Ethernet channel MODBUS-TCP


Parameter Characteristic Application Videos

Technical Parameter

model

Box type SLTM-D0808RT-A32-C2A

External dimensions

LxWxH：120*80*62mm

power supply

DC24V >1A

Switching input

8 DC24V NPN/PNP inputs

Switching Output

8-channel DC24V PNP output

analog input

3-channel 0-10V or 4-20mA input

analog output

1 voltage, 1 current output

Communication mode

2 RS485 MODBUS-RTU
1 Ethernet channel MODBUS-TCP

Basic parameters：

model：Box type SLTM-D0808RT-A32-C2A

Dimensions: L, W, H：120*80*62mm
power supply：DC24V >1A
Switching input：8 DC24V NPN/PNP inputs
Switching Output：8 DC24V PNP output
analog input：3-channel 0-10V or 4-20mA input
analog output：1 voltage, 1 current output
Communication mode：2 RS485 MODBUS-RTU
                 1 Ethernet channel MODBUS-TCP
