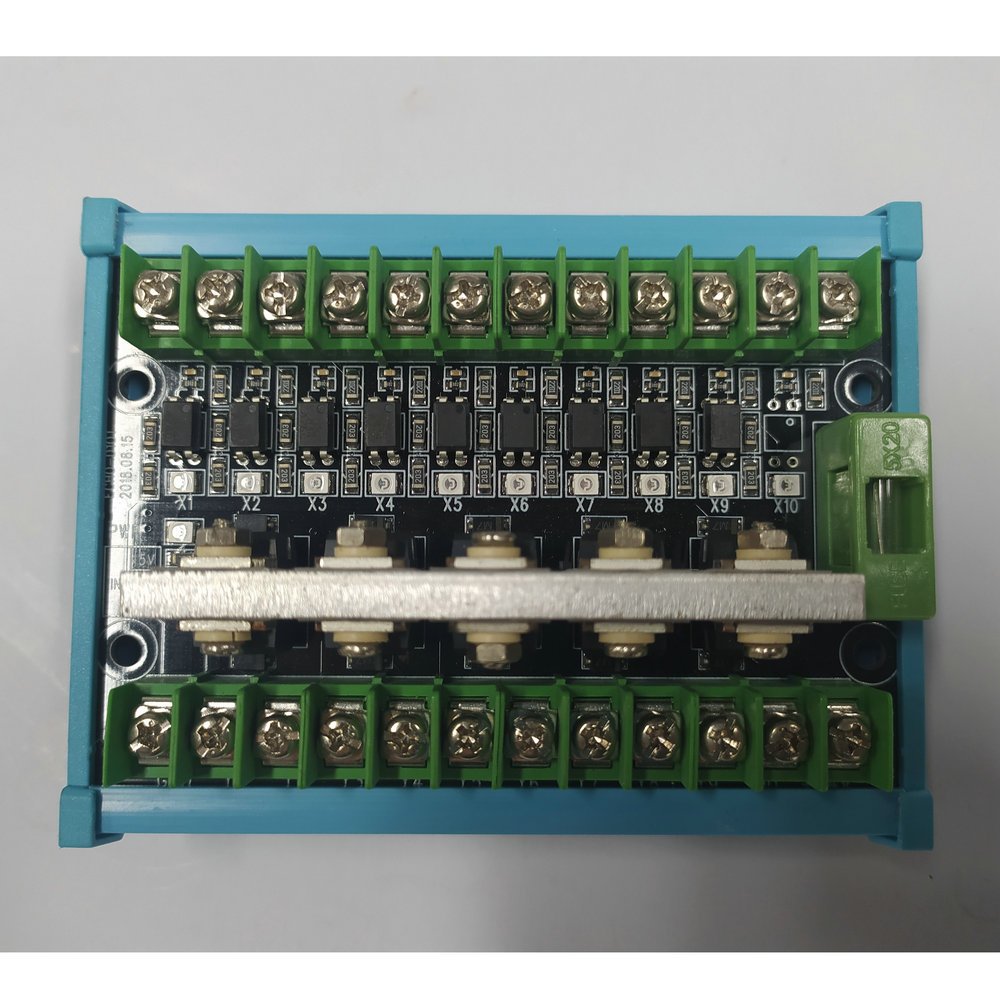

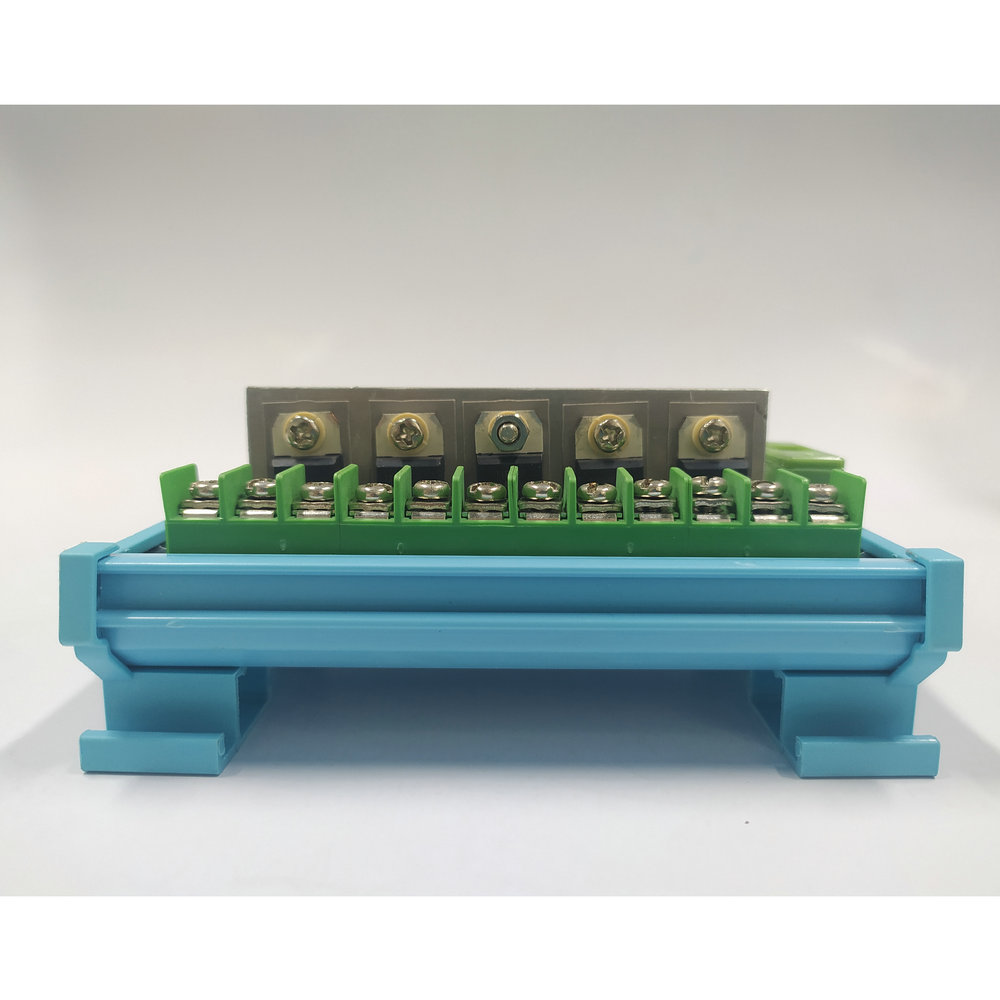

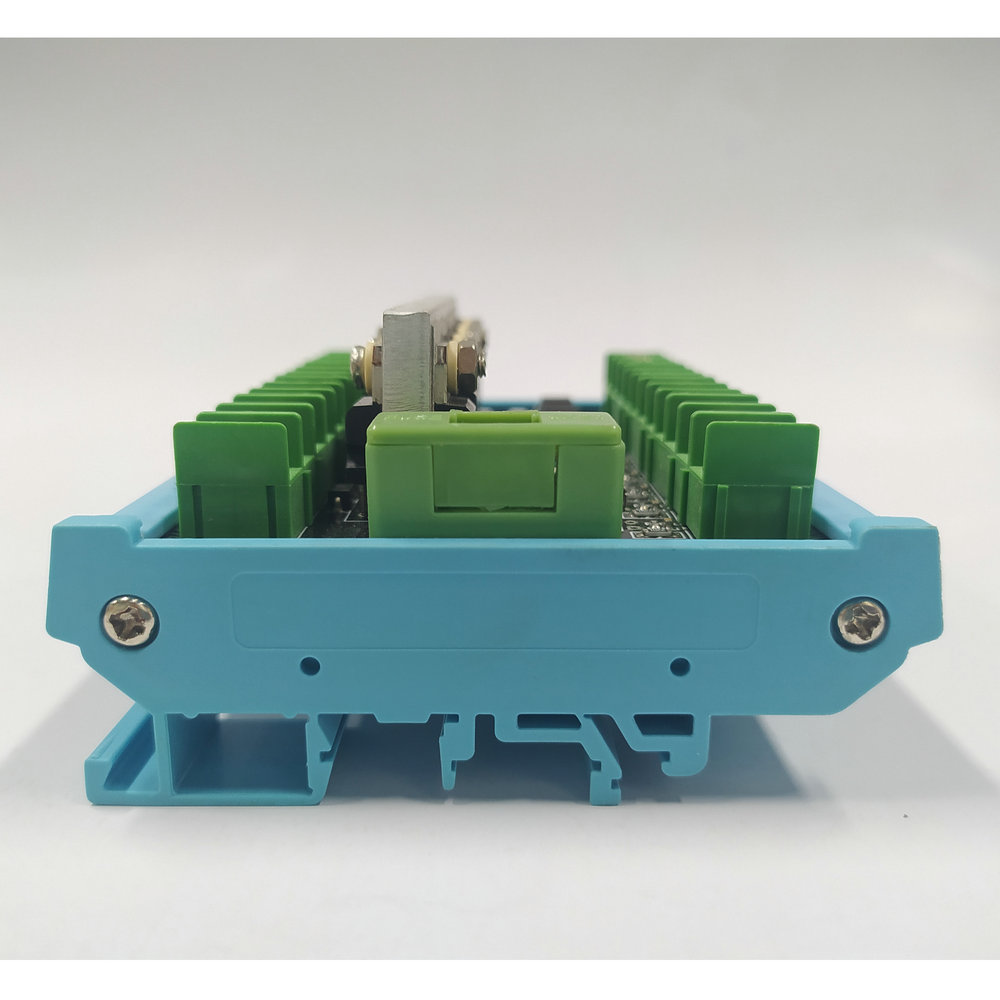

10 channel transistor amplification module（ECHO-D10T）

Technical parameter：

Model: ECHO-D10T

Input/output points: 10 channels

Input signal: NPN co positive or PNP co negative

Input voltage: 5-24VDC

Output type: epitaxial based PNP power transistor

Output voltage: 1A 60VDC/3A 24VDC

Contact form: contactless

Output status indication: LED light indication

Response time: ＜ 10ms

Parameter Characteristic Application Videos

technical parameter

Model

ECHO-D10T

Input/output points

10 channels

Input signal

NPN co positive or PNP co negative

Input voltage

5-24VDC

type of output

Epitaxial based PNP power transistor

output voltage

1A  60VDC / 3A     24VDC

contact form

Contactless

Output status indication

LED light indication

response time

＜10ms


Click to download PDF document>>>

ECHO-D10T放大模组使用说明书.pdf


Technical parameter：

Model: ECHO-D10T

Input/output points: 10 channels

Input signal: NPN co positive or PNP co negative

Input voltage: 5-24VDC

Output type: epitaxial based PNP power transistor

Output voltage: 1A 60VDC/3A 24VDC

Contact form: contactless

Output status indication: LED light indication

Response time: ＜ 10ms
