current location: HomeProductsDew-point instrument
DMT152

Product Features

1. Polymer film capacitive sensor technology, resistant to condensation, particulate matter, oil vapor, and pollution from most chemicals;

2. Fast response speed, wide range, excellent anti-interference ability, and long-term stability;

3. Automatic calibration circuit design ensures measurement accuracy and stability, with calibration intervals of over two years, reducing maintenance and lowering usage costs;



Parameter Characteristic Application Videos

Product Introduction

The dew point transmitter DMT152 is designed to measure low dew points, even as low as -80 ° C. Polymer sensor technology has created excellent performance stability and reliability for this transmitter. Widely used in fields such as air separation, plastic drying machines, drying chambers, drying gases, and high-voltage circuit breakers, as well as in environments and equipment. The structural design of the transmitter can prevent dust, dirt, and water splashes, and can be used in harsh environments. In harsh conditions, such as the combined effects of low humidity and high air temperature, the measurement results are also accurate and reliable. It has good anti condensation stability and durability, thus requiring less maintenance work.

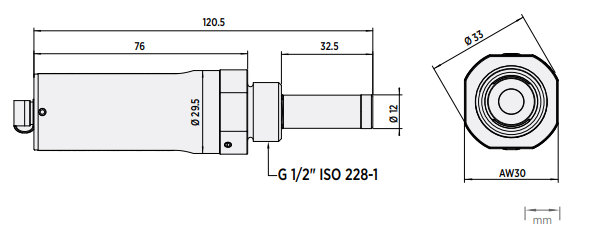

Product dimension diagram


Technical Parameter

Working principle

Capacitive polymer film

measuring range

-80/-70℃ ~ 20℃  CTd

measurement accuracy

±2℃(In air or nitrogen)

response time

on 20 °C and1 bar Dew point response time under conditions 63 % [90 %]:



                                         −50 → −10 °C Tdf              5 s [10 s]



−10 → −50 °C Tdf             10 s [2.5 min]

output interface

4~20mA/0-10V

Communication method

RS485

Working power supply

DC24V,≤3W

temperature and humidity

-40℃~+60℃,<100% RH non-condensing

Pressure Range

0~50bar

sample flow

No impact on measurement accuracy

Sample gas requirements

Air/non corrosive gas

thread specification

Probe connection G1/2

Product Features

1. Polymer film capacitive sensor technology, resistant to condensation, particulate matter, oil vapor, and pollution from most chemicals;

2. Fast response speed, wide range, excellent anti-interference ability, and long-term stability;

3. Automatic calibration circuit design ensures measurement accuracy and stability, with calibration intervals of over two years, reducing maintenance and lowering usage costs;


这里填写应用领域
