Parameter Characteristic Application Videos

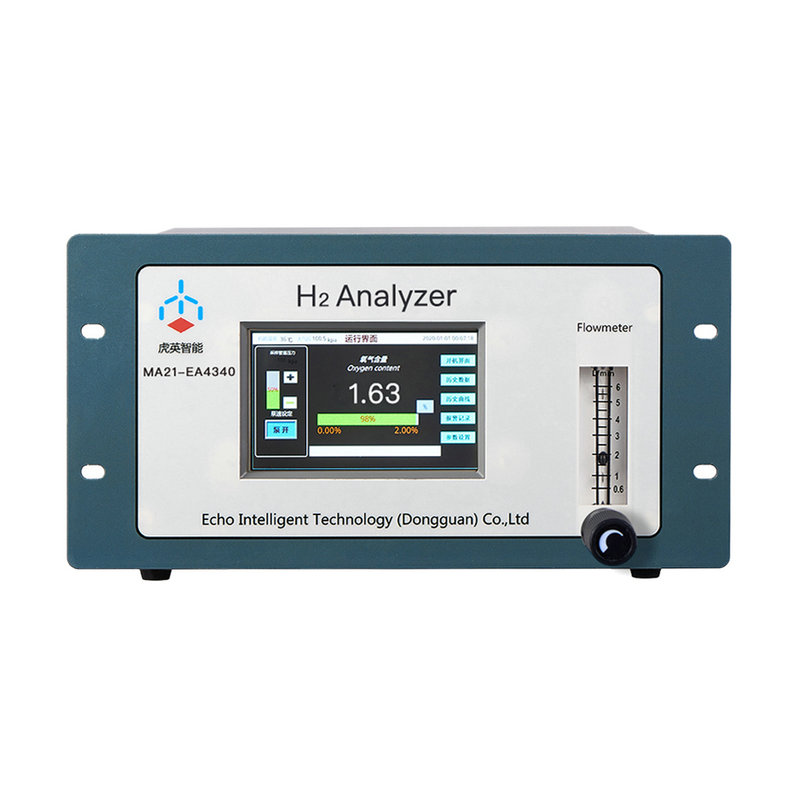

The trace hydrogen analyzer is a high-performance intelligent instrument that uses imported trace hydrogen gas sensors as measuring units and combines microcontroller control technology. It has the advantages of advanced technology, high precision, fast response, stable performance, complete functions, easy operation, and continuous gas analysis process. Suitable for accurate measurement of hydrogen concentration in various industries and environments.
Technical Parameter：
Working principle | Electrochemical hydrogen gas sensor |
Display mode | 4.3-inch touch screen |
detection range | 0~10ppm/2000ppm/2% H2 |
linearity error | ±2% FS |
repeatability | ±1% FS |
stability | ±1%F.S/1 week |
Communication mode | RS485 |
Working power supply | AC220V |
Sampling method | Suction type |
Installation method | Wall mounted or embedded |
Product Features
1. The instrument adopts a 4.3-inch touch screen display, which is easy to operate and has clear display;
2. The instrument is equipped with RS485 communication port and control output port;
3. Hydrogen concentration alarm value can be set;
4. The sensor has specificity for hydrogen gas and no cross sensitivity to other gases;
