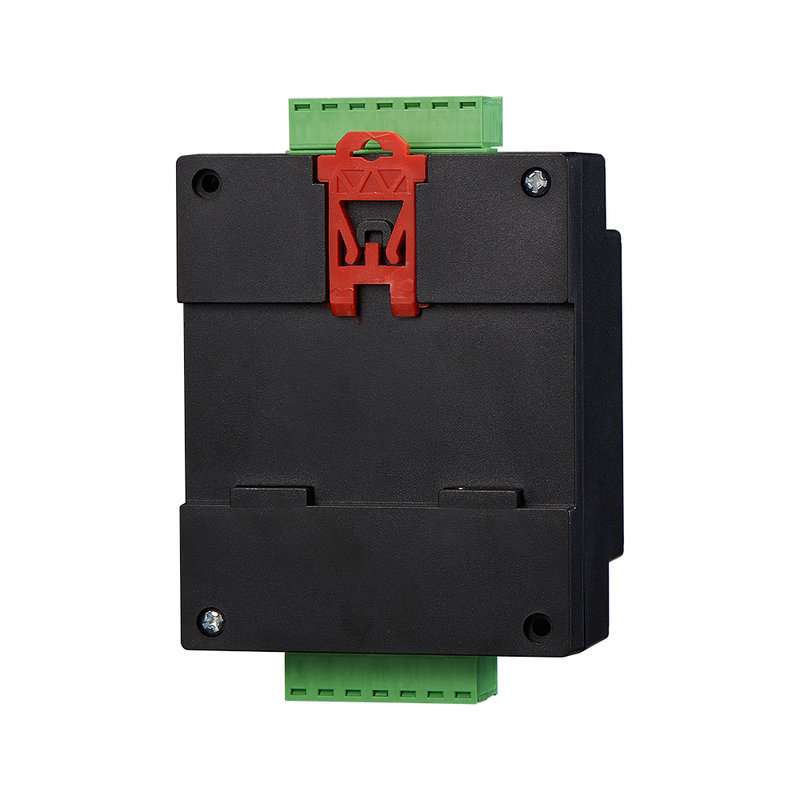

Oxygen content transmitter(MT1O-1LG0000)

Technical parameters:

Working principle: Zirconia

Detection range: 0~10/100/1000ppm/1.00/21.00% O2

Measurement accuracy: 0~1000ppm/1.00/21.00% O2 ≤ ± 1% FS

0~100ppm ≤ ± 2% FS

0~10ppm ≤ ± 5% FS

Resolution: 0.01% O2

Repeatability: ± 1% FS

Control output: non isolated 4-20mA DC

Non isolated 0-10V DC

1 channel programmable relay alarm output


Parameter Characteristic Application Videos

Product Introduction
The Oxygen transmitter has a simple structure, small volume, and convenient installation; Equipped with RS485 communication port, analog output of 0-10V or 4-20mA; Original imported zirconia sensor with high measurement accuracy, fast response, and long service life;

Technical parameter

operational principle

Zirconia

Detection scope

0~10/100/1000ppm/1.00/21.00% O2



measurement accuracy

0~1000ppm/1.00/21.00%O2≤±1% FS

0 ~ 100ppm≤±2% FS

0 ~ 10ppm≤±5% FS

resolving power

0.01% O2

Repeatability

±1% FS



Control output

Non isolated 4~20mA  DC

Non isolated 0~10V    DC

1 channel programmable relay alarm output

Communication mode

RS485

Working power supply

DC24V/2A

Environmental temperature and humidity

-5℃~+50℃   ,   <80% RH

Sampling method

Free diffusion

Background gas

A mixture of nitrogen, inert gas, and oxygen

service life

>4 years(Under normal usage conditions)

Installation method

Controller plug-in, probe insertion KF25 flange installation

Technical parameters:

Working principle: Zirconia

Detection range: 0~10/100/1000ppm/1.00/21.00% O2

Measurement accuracy: 0~1000ppm/1.00/21.00% O2 ≤ ± 1% FS

0~100ppm ≤ ± 2% FS

0~10ppm ≤ ± 5% FS

Resolution: 0.01% O2

Repeatability: ± 1% FS

Control output: non isolated 4-20mA DC

Non isolated 0-10V DC

1 channel programmable relay alarm output

Communication method: RS485

Working power supply: DC24V/2A

Environmental temperature and humidity: -5 ℃~+50 ℃, < 80% RH

Sampling method: free diffusion

Background gas: a mixture of nitrogen, inert gas, and oxygen

Service life:>4 years (under normal usage conditions)

Installation method: Controller external, probe insertion KF25 flange installation
