Product Introduction

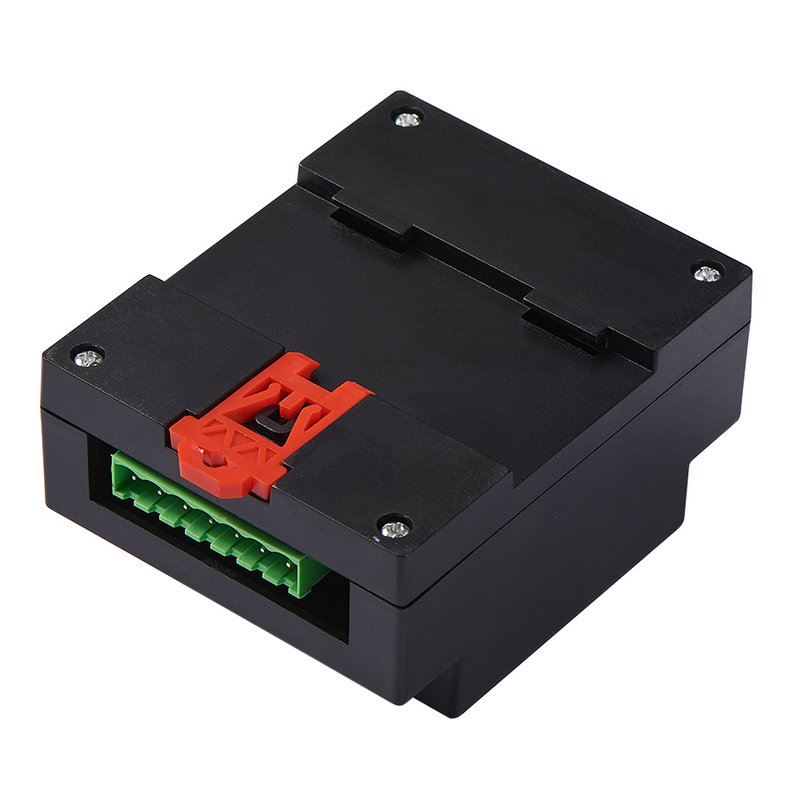

The HYA-L1G-D oxygen transmitter is equipped with an OLED screen display function, which can display the current oxygen content in real time. Simple structure, small size, and convenient installation; Equipped with RS485 communication port, analog output of 0-10V or 4-20mA; Original imported zirconia sensor with high measurement accuracy, fast response, and long service life;
Technical parameter
operational principle | Zirconia |
Display method | 1.3 inch OLED display |
Detection scope | 0~10/100/1000ppm/1.00/21.00％ O2 |
measurement accuracy | 0~1000ppm/1.00/21.00％O2≤±1% FS |
0 ~ 100ppm≤±2% FS | |
0 ~ 10ppm≤±5% FS | |
resolving power | 0.01％ O2 |
Repeatability | ±1% FS |
Control output | Non isolated 4~20mA DC |
Non isolated 0~10V DC | |
1 channel programmable relay alarm output | |
Communication mode | RS485 |
Working power supply | DC24V/2A |
Environmental temperature and humidity | －5℃～+50℃ ， ＜80％ RH |
Sampling method | Free diffusion |
Background gas | A mixture of nitrogen, inert gas, and oxygen |
service life | ＞4 years（Under normal usage conditions） |
Installation method | Controller plug-in, probe insertion KF25 flange installation |
Product features:
Working principle: Zirconia
Display method: 1.3-inch OLED display
Detection range: 0~10/100/1000ppm/1.00/21.00% O2
Measurement accuracy: 0~1000ppm/1.00/21.00% O2 ≤ ± 1% FS
0~100ppm ≤ ± 2% FS
0~10ppm ≤ ± 5% FS
Resolution: 0.01% O2
Repeatability: ± 1% FS
Control output: non isolated 4-20mA DC
Non isolated 0-10V DC
1 programmable relay alarm output
Communication method: RS485
Working power supply: DC24V/2A
Environmental temperature and humidity: -5 ℃~+50 ℃, ＜ 80% RH
Sampling method: free diffusion
Background gas: a mixture of nitrogen, inert gas, and oxygen
Service life:>4 years (under normal usage conditions)
Installation method: Controller external, probe insertion KF25 flange installation
