Product Introduction
The nitrogen controller is equipped with an oxygen concentration analyzer. Control the size of the intake nitrogen valve based on the measured oxygen concentration in the environment. When the oxygen concentration in the environment is high, the proportion of valves is large; The oxygen concentration is low (meeting the set requirements), and the proportion of nitrogen valves is small or closed. Automatically control the oxygen concentration inside the atmosphere protection furnace, without the need for manual intervention, thus saving nitrogen and effectively reducing the cost of equipment operation.
Technical parameter
operational principle | Zirconia |
Display method | 10 inch touch screen |
Detection scope | 0~10/100/1000ppm/1.00/21.00％ O2 |
measurement accuracy | 0~1000ppm/1.00/21.00％O2≤±1% FS |
0 ~ 100ppm≤±2% FS | |
0 ~ 10ppm≤±5% FS | |
resolving power | 0.01％ O2 |
Repeatability | ±1% FS |
Communication mode | RS485，Ethernet |
Working power supply | AC85 ~ 264V 50/60Hz |
Environmental temperature and humidity | －5℃～+50℃ ， ＜80％ RH |
Sample gas temperature | -10℃ ~ +50℃ |
Adopting methods | Aspirated type |
Sample gas flow rate | 2~3L/min |
Sample gas pressure | Micro positive pressure, micro negative pressure, or positive pressure |
Background gas | A mixture of nitrogen, inert gas, and oxygen |
Specifications and dimensions | 840mm×450mm×350mm（H×W×D） |
service life | ＞4 years（Under normal usage conditions） |
Pneumatic interface | Stainless steel quick tightening with a diameter of 4mm inside and 6mm outside |
Installation method | Placed |
Product features

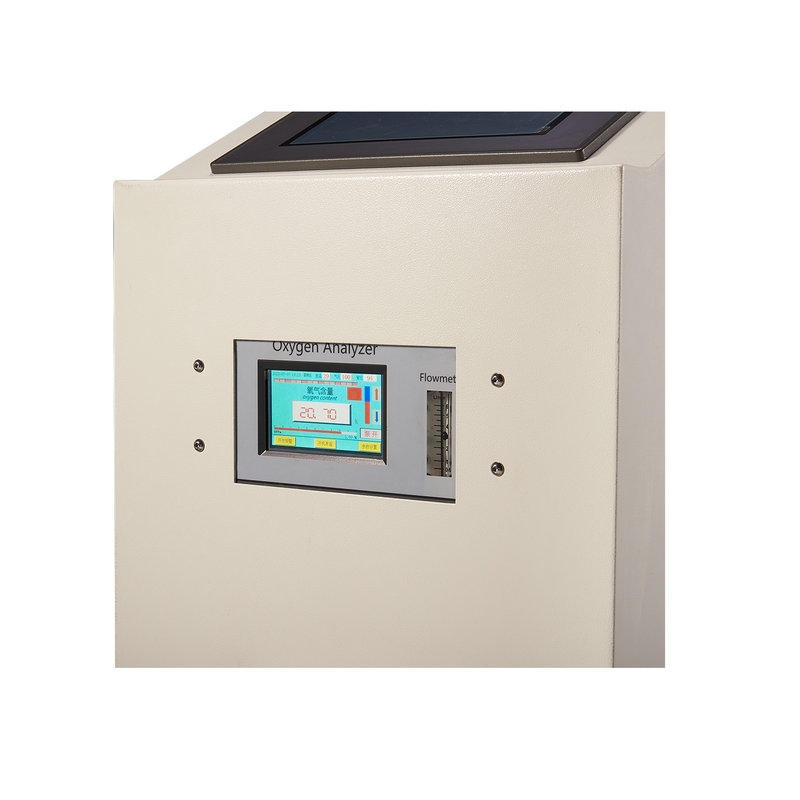

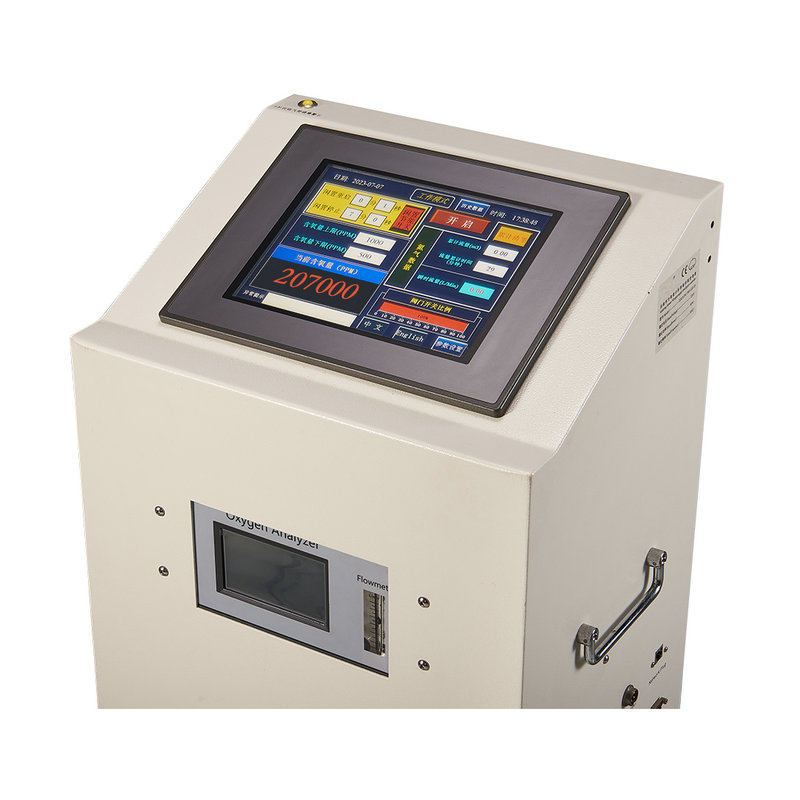

1、The instrument adopts multiple 10 inch touch screens for easy operation and clear display;
2、The instrument is equipped with an RS485 communication port and an Ethernet interface that complies with the Modbus TCP protocol. Multiple communication ports enable users to easily access the Internet of Things;
3、The instrument can communicate one-way or two-way with the upper computer.
4、Original imported zirconia sensor with high measurement accuracy, fast response, and long service life;
5、 Automatically control the oxygen concentration inside the atmosphere protection furnace without the need for manual intervention;
6、 Built in temperature and pressure monitoring modules and pipeline pressure sensors;
7、The instrument is equipped with an original imported suction pump, which works stably and has a long service life;
8、Equipped with gas path blockage alarm and self-protection function. After the air path is blocked, the air pump will automatically shut down, stopping the operation of the oxygen sensor, which can effectively extend the service life of the air pump and sensor;
9、Wide range AC power supply, with a wider range of applications;
