Product Introduction

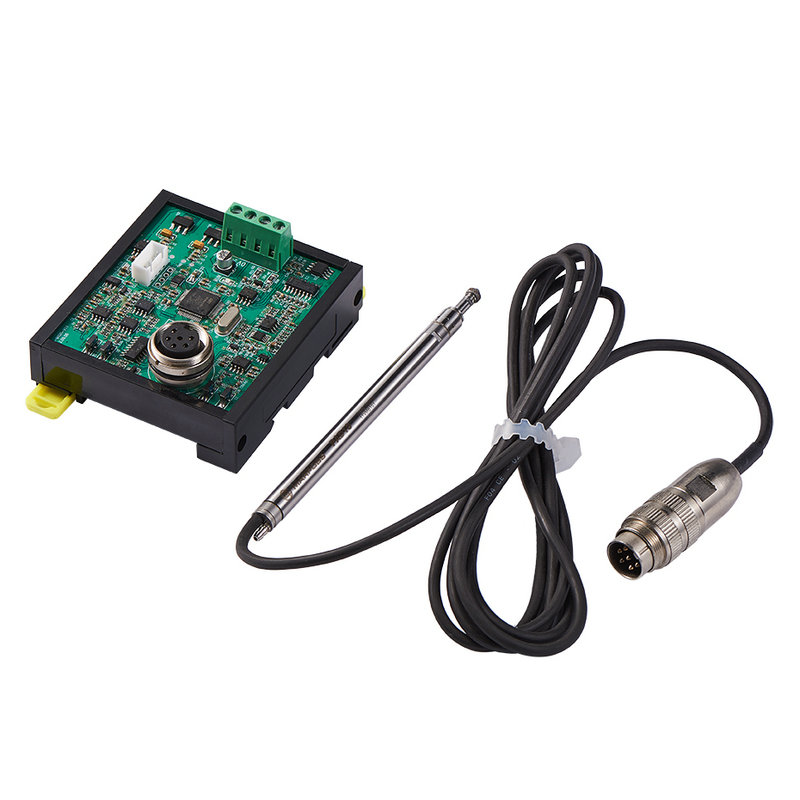

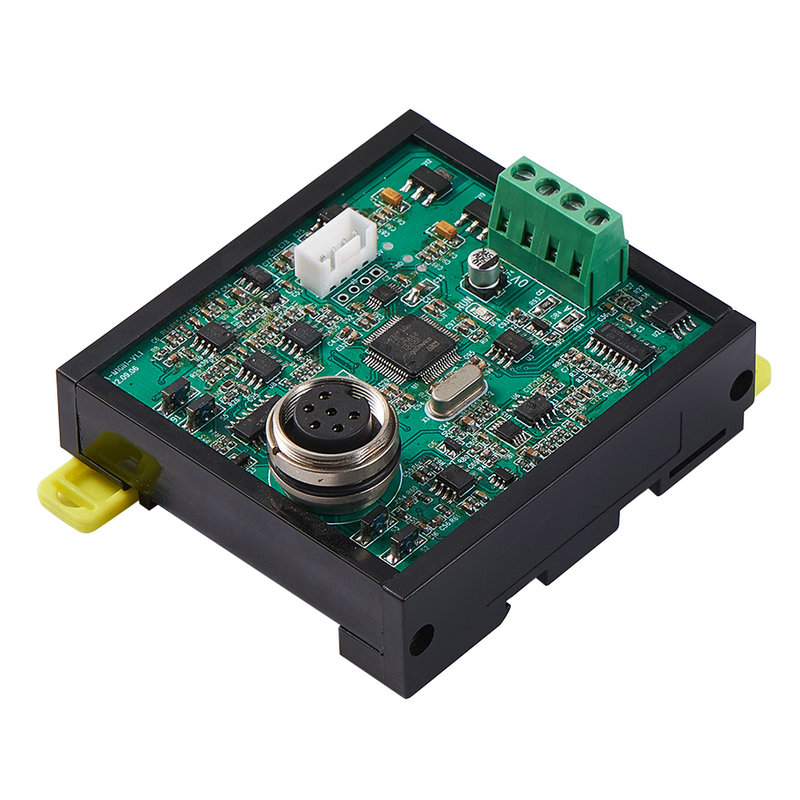

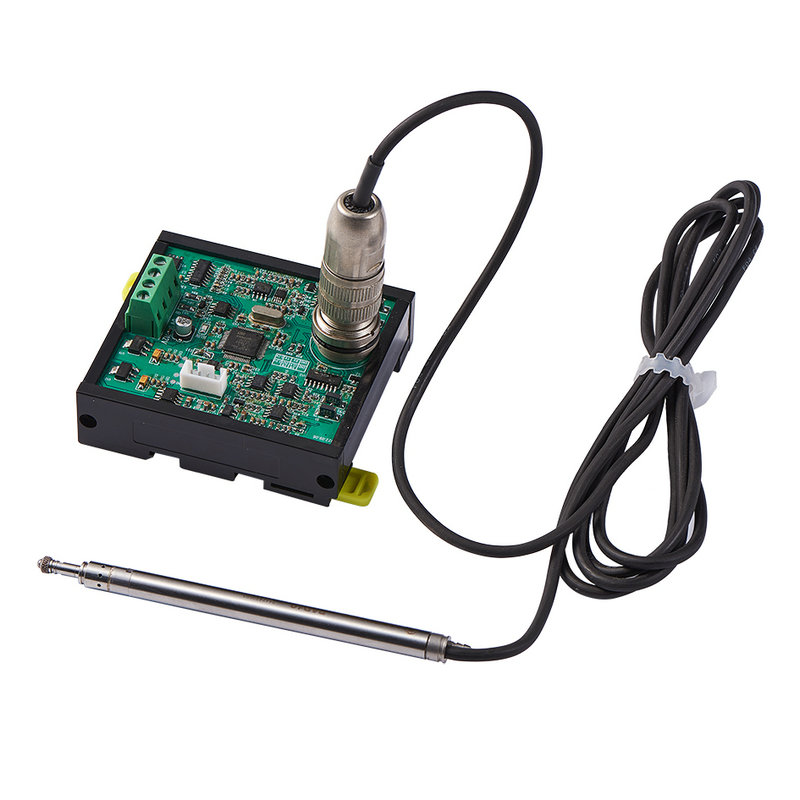

A displacement sensor, also known as a linear sensor, is a linear device that belongs to metal induction. The function of the sensor is to convert various measured physical quantities into electrical quantities. Our displacement data collector uses imported inductive displacement sensors, which can be used to measure displacement data at a distance of 1uM, with an accuracy of up to 1uM. Suitable for industries with high precision processing requirements. Such as bearings, car engines, etc.
Technical parameter
measuring range （0-20mm）
Spring strength（N/mm±15%）0.17
Force measurement（N/25%）1
Repetitive accuracy（μm）0.15
Thermal drift（μm/℃）0.25
Basic parameters
A displacement sensor, also known as a linear sensor, is a linear device that belongs to metal induction. The function of the sensor is to convert various measured physical quantities into electrical quantities. Our displacement data collector uses imported inductive displacement sensors, which can be used to measure displacement data at a distance of 1uM, with an accuracy of up to 1uM. Suitable for industries with high precision processing requirements. Such as bearings, car engines, etc.
Measurement range (0-20mm)
Spring strength (N/mm ± 15%) 0.17
Force measurement (N/25%) 1
Repetitive accuracy (μ m) 0.15
Thermal drift (μ m/℃) 0.25
