MA11-ED3513B

Product Features

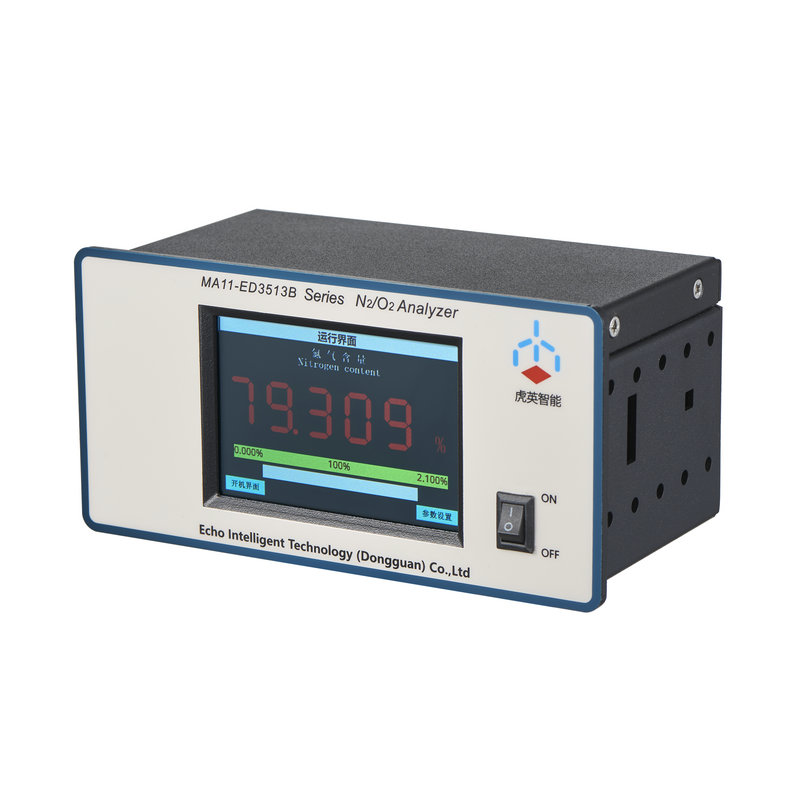

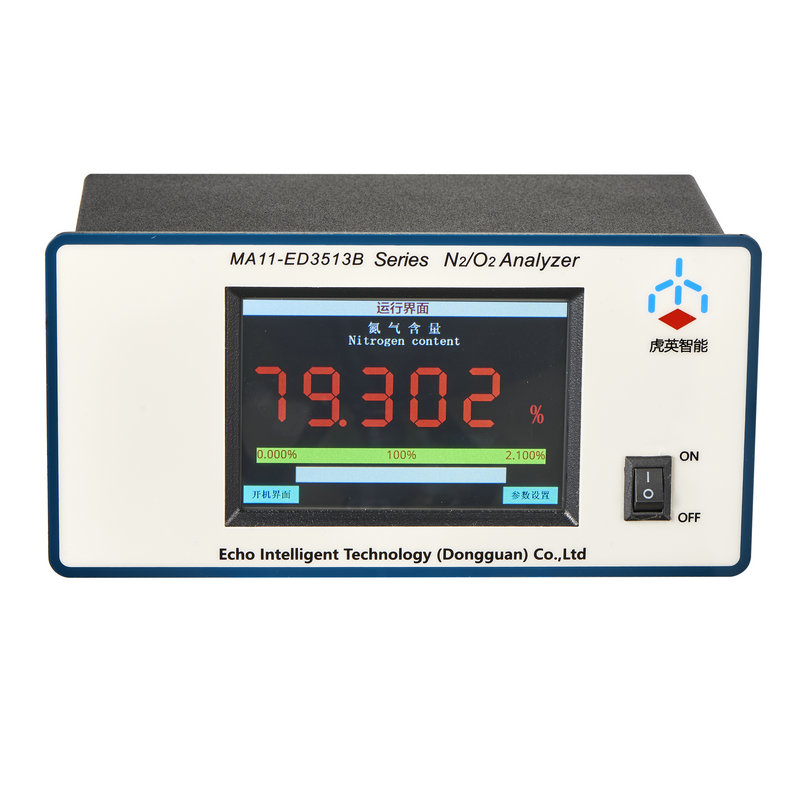

1. The instrument adopts a 3.5-inch touch screen display, which is easy to operate and has clear display;

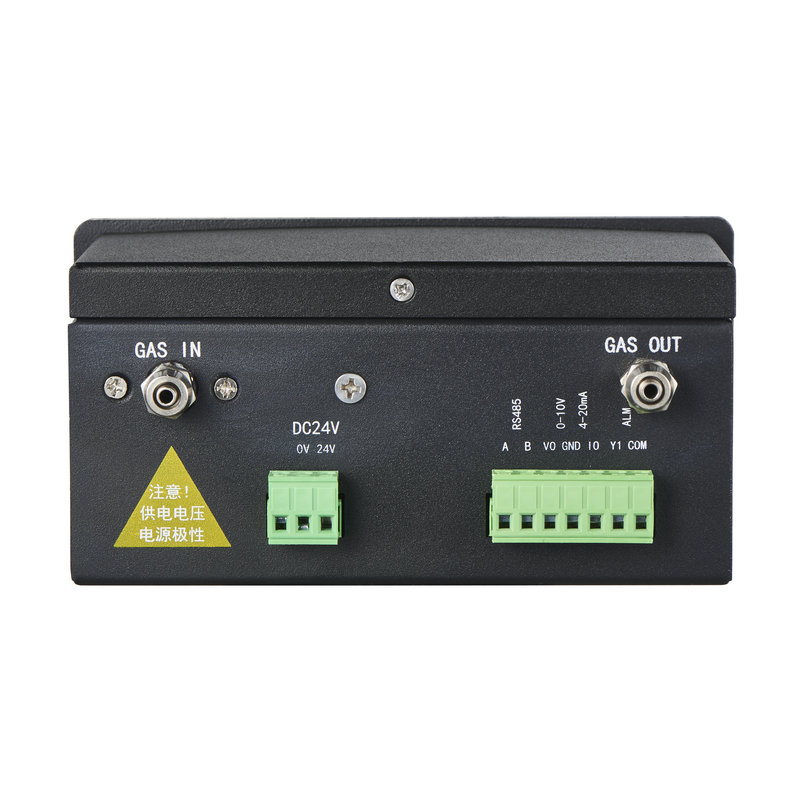

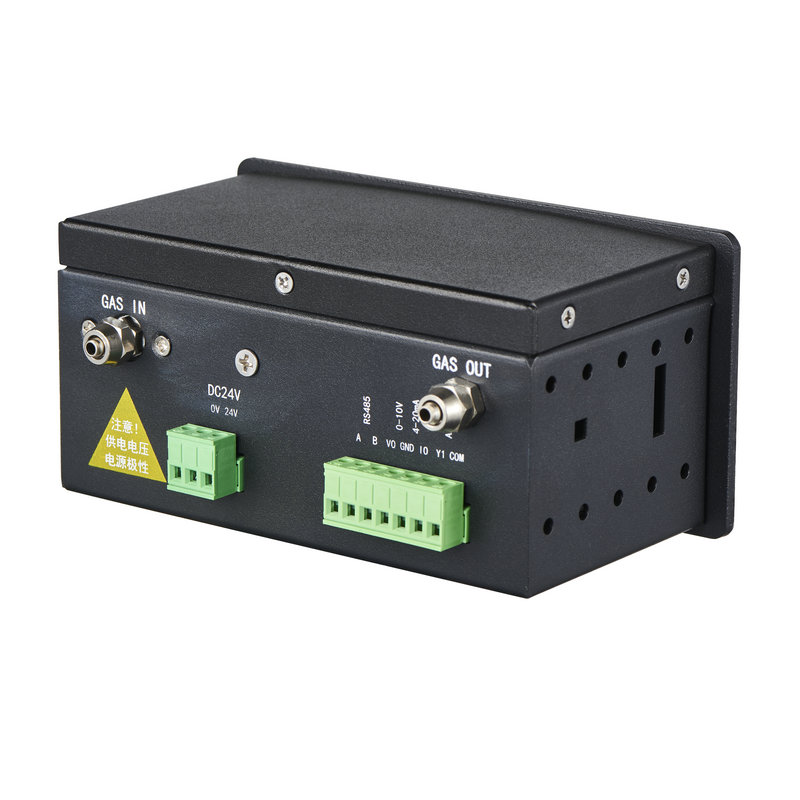

2. The instrument is equipped with RS485 communication port, with analog outputs of 0-10V and 4-20mA;

3. The original imported zirconium nitride sensor has high measurement accuracy, fast response, and long service life;

4. Power supply DC24V/2A

5. The short length of the casing makes it very suitable for devices with small installation space.



Parameter Characteristic Application Videos

Product Introduction

The nitrogen content analyzer has a simple structure, small volume, and easy installation; Equipped with RS485 communication port, analog output of 0-10V or 4-20mA; Original imported zirconia sensor with high measurement accuracy, fast response, and long lifespan; Widely used in industries such as air separation for nitrogen production, petrochemicals, metallurgy, electronics and power, and healthcare that require detection and analysis of oxygen content in various mixed gases.

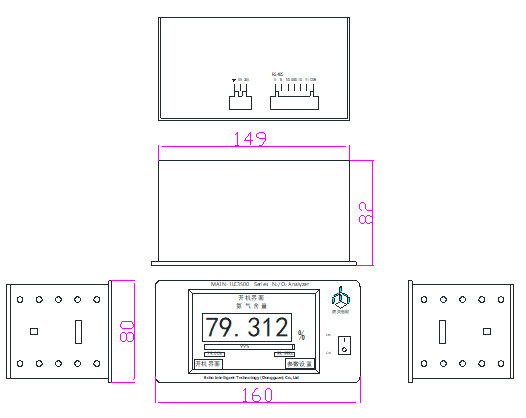

Product dimension diagram (unit: mm)


Technical Parameter

Working principle

Zirconia

Working power supply

DC24V/2A

Display mode

3.5-inch touch screen

Environmental temperature and humidity

-5℃~+50℃,<80% RH

detection range

10/100/1000ppm/~21.00% O2
     2N/3N/4N/5N       N2

Sample gas temperature

0℃ ~ +50℃



measurement accuracy

0~21.00%O2≤±1% FS

Adopting methods

Gas inlet type



0~ 10000ppm≤±2% FS

Sample gas flow rate

0.4~0.6L/min



0 ~ 100ppm≤±5% FS

Specification and size

80mm×160mm×94mm(H×W×D)

repeatability

±1% FS

Dimension

76mm×151mm(H×W)



control output

Non-Isolated4~20mA  DC

service life

>5 years (under normal usage conditions)



Non-Isolated 0~10V    DC

Gas interface

Diameter 4mm inside and 6mm outside, stainless steel quick twist



1-channel relay alarm output (maximum load 5A)

Installation method

Embedded

Communication mode

RS485




Product Features

1. The instrument adopts a 3.5-inch touch screen display, which is easy to operate and has clear display;

2. The instrument is equipped with RS485 communication port, with analog outputs of 0-10V and 4-20mA;

3. The original imported zirconium nitride sensor has high measurement accuracy, fast response, and long service life;

4. Power supply DC24V/2A

5. The short length of the casing makes it very suitable for devices with small installation space.


这里填写应用领域
