MA11-EA0214B

Product Features

1. The instrument adopts a digital tube display, which displays clearly;

2. The original imported zirconium nitride sensor has high measurement accuracy, fast response, and long service life;

3. Power supply AC85~264V 50/60Hz

4. The volume is the smallest model in the series with a display, which is very suitable for mini devices.



Parameter Characteristic Application Videos

Product Introduction

The nitrogen content analyzer has a simple structure, small volume, and easy installation; Original imported zirconia sensor with high measurement accuracy, fast response, and long lifespan; Widely used in industries such as air separation for nitrogen production, petrochemicals, metallurgy, electronics and power, and healthcare that require detection and analysis of oxygen content in various mixed gases.

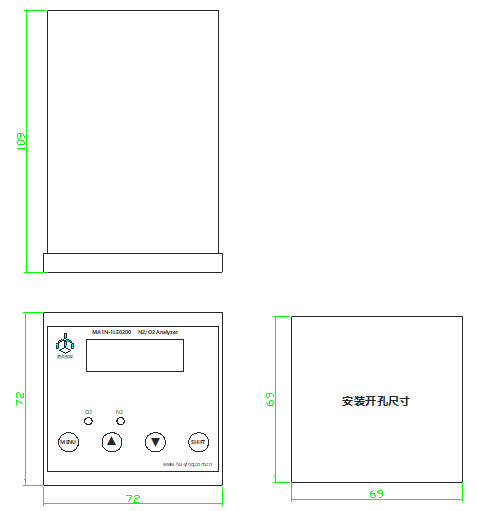

Product dimension diagram (unit: mm)


Technical Parameter





Working principle

Zirconia

Adopting methods

Gas inlet type

Display mode

LED  4-digit digital tube

Sample gas flow rate

0.4~0.6L/min

detection range

1000ppm~25.00% O2
       2N/3N         N2

Specification and size

72mm×72mm×139mm(H×W×D)

measurement accuracy

1000~25.00%O2≤±1% FS

Dimension

69mm×69mm(H×W)

repeatability

±1% FS

service life

>5 years (under normal usage conditions)

Working power supply

AC85 ~ 264V 50/60Hz

Gas interface

Diameter 4mm inside and 6mm outside, stainless steel quick twist

Environmental temperature and humidity

-5℃~+50℃,<80% RH

Installation method

Embedded

Sample gas temperature

0℃ ~ +50℃




Product Features

1. The instrument adopts a digital tube display, which displays clearly;

2. The original imported zirconium nitride sensor has high measurement accuracy, fast response, and long service life;

3. Power supply AC85~264V 50/60Hz

4. The volume is the smallest model in the series with a display, which is very suitable for mini devices.


这里填写应用领域
