MT11-WD0013B

Product Features

1. The instrument is equipped with an RS485 communication port, a metal casing, and strong anti-interference ability;

2. The original imported zirconium nitride sensor has high measurement accuracy, fast response, and long service life;

3. Power supply DC24V/2A;

4. Wall mounted installation.



Parameter Characteristic Application Videos

Product Introduction

The nitrogen content analyzer has a simple structure, small volume, and easy installation; Equipped with RS485 communication port; Original imported zirconia sensor with high measurement accuracy, fast response, and long lifespan; Widely used in industries such as air separation for nitrogen production, petrochemicals, metallurgy, electronics and power, and healthcare that require detection and analysis of oxygen content in various mixed gases.

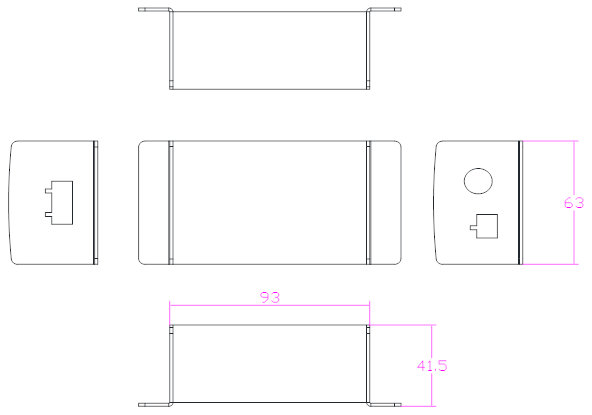

Product dimension diagram (unit: mm)


Technical Parameter

Working principle

Zirconia

Environmental temperature and humidity

-5℃~+50℃,<80% RH

Display mode

not have

Sample gas temperature

0℃ ~ +50℃

detection range

10/100/1000ppm/~21.00% O2
       2N/3N/4N/5N       N2

Adopting methods

Gas inlet type



measurement accuracy

0~21.00%O2≤±1% FS

Sample gas flow rate

0.4~0.6L/min

0~ 10000ppm≤±2% FS

Specification and size

41.5mm×93mm×63mm(H×W×D)

0 ~ 100ppm≤±5% FS

service life

>5 years (under normal usage conditions)

repeatability

±1% FS

Communication method

RS485

Working power supply

DC24V/2A

Installation method

  Wall Mount

Product Features

1. The instrument is equipped with an RS485 communication port, a metal casing, and strong anti-interference ability;

2. The original imported zirconium nitride sensor has high measurement accuracy, fast response, and long service life;

3. Power supply DC24V/2A;

4. Wall mounted installation.


这里填写应用领域
