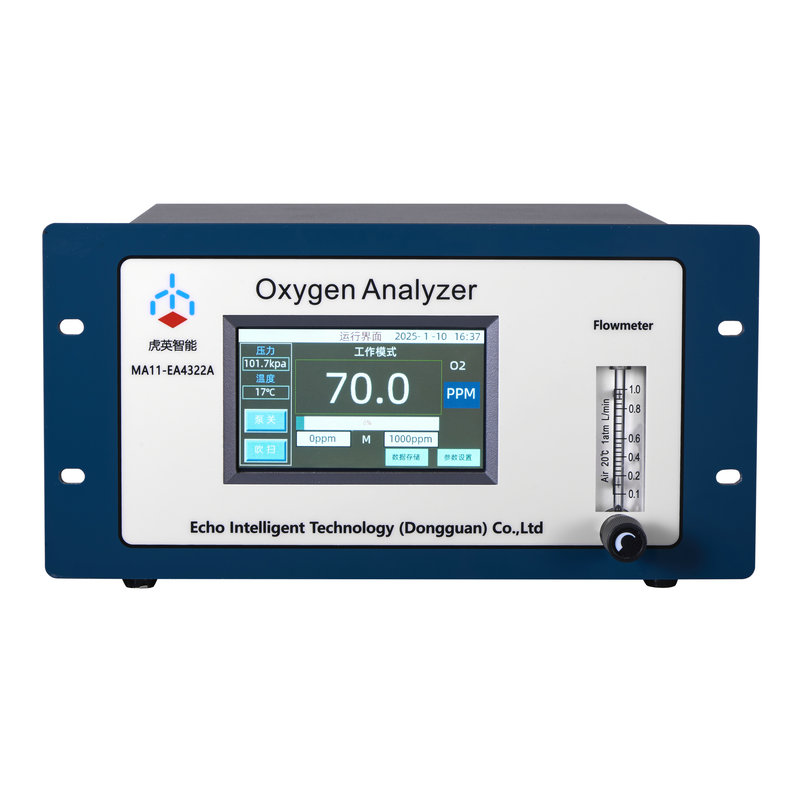

MA11-EA4322A

Product Features

1. The instrument adopts a 4.3-inch touch screen display, which is easy to operate and has clear display;

2. The instrument is equipped with RS-232 and RS485 communication ports, and is compatible with Modbus TCP

Ethernet interface of the protocol. Multiple communication ports enable users to easily access the Internet of Things;

3. The analyzer can communicate unidirectionally or bidirectionally with the upper computer.

4. The original imported electrochemical oxygen sensor has high measurement accuracy, fast response, and long service life;

5. Featuring a patented sensor chamber for easy on-site sensor replacement by users;

6. The sensor chamber is equipped with temperature and pressure monitoring modules. The instrument is equipped with overvoltage protection and automatic pressure compensation function;

7. Over range protection: When the oxygen concentration exceeds the set upper limit, the gas path automatically switches to avoid the sensor being in a high oxygen concentration environment for a long time, thereby extending the service life of the oxygen sensor;

8. The analyzer is equipped with an original imported air pump, which works stably and has a long service life;



Parameter Characteristic Application Videos

Product Introduction

The MA11-EA4322A trace oxygen analyzer is the latest high-precision online oxygen content detection and analysis instrument developed by our company. This analyzer adopts imported electrochemical oxygen sensors combined with microcontroller control technology. It has the advantages of advanced technology, high precision, fast response, stable performance, complete functions, easy operation, and continuous gas analysis process. Widely used in industries such as air separation for nitrogen production, petrochemicals, metallurgy, electronics and power, and healthcare that require detection and analysis of oxygen content in various mixed gases.

Product dimension diagram


Technical Parameter

Working principle

electrochemistry

Display mode

4.3-inch touch screen

detection range

0~10/100/1000ppm O2



measurement accuracy

0.01~9.99ppm≤±5% FS



10~99.9ppm≤±2% FS



100~1000ppm≤±1% FS

resolution

0.01ppm O2

repeatability

±1% FS



control output

Non-Isolated4~20mA  DC



Non-Isolated0~10V    DC



2-channel programmable relay alarm output (maximum load 5A)

Communication method

RS232,RS485,Ethernet

Working power supply

AC85~264V 50/60Hz

Environmental temperature and humidity

-5℃~+50℃,<80% RH

Sample gas temperature

-10℃~+50℃

Sampling method

Suction type

Sample gas flow rate

0.1~1L/min

Sample gas pressure

Micro positive pressure, micro negative pressure or positive pressure

background gas

Mixed gas of nitrogen, inert gas, and oxygen

Specification and size

138mm×276mm×297mm(H×W×D)

Dimension

134mm×232mm(H×W)

service life

>4 years (under normal usage conditions)

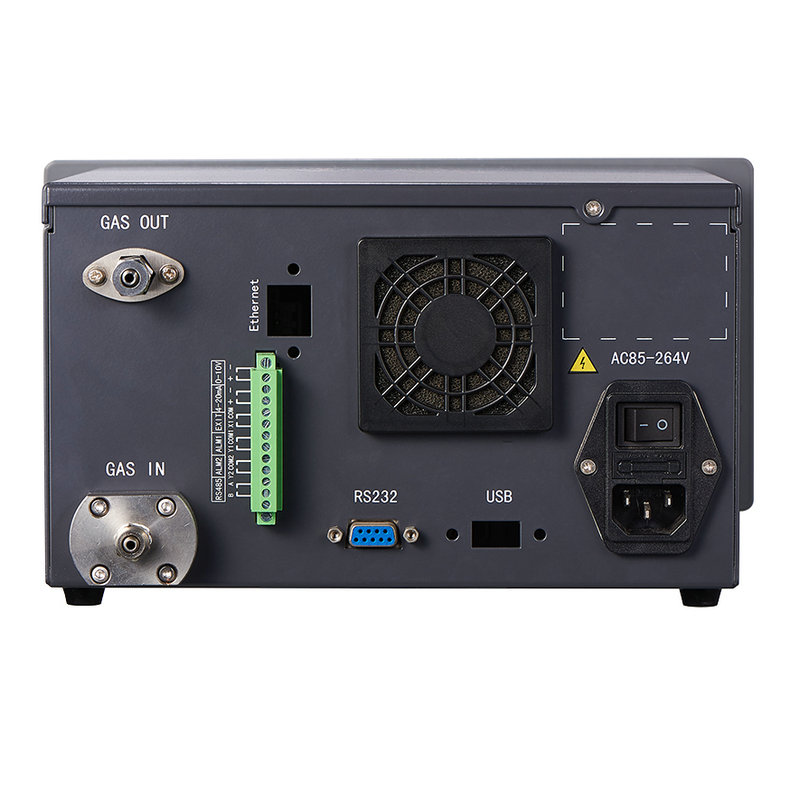

Gas interface

Air inlet: Diameter 4mm inside and 6mm outside, stainless steel quick twist



Air outlet: inner diameter 2.5mm, outer diameter 4mm stainless steel quick twist

Installation method

Placed or embedded

Product Features

1. The instrument adopts a 4.3-inch touch screen display, which is easy to operate and has clear display;

2. The instrument is equipped with RS-232 and RS485 communication ports, and is compatible with Modbus TCP

Ethernet interface of the protocol. Multiple communication ports enable users to easily access the Internet of Things;

3. The analyzer can communicate unidirectionally or bidirectionally with the upper computer.

4. The original imported electrochemical oxygen sensor has high measurement accuracy, fast response, and long service life;

5. Featuring a patented sensor chamber for easy on-site sensor replacement by users;

6. The sensor chamber is equipped with temperature and pressure monitoring modules. The instrument is equipped with overvoltage protection and automatic pressure compensation function;

7. Over range protection: When the oxygen concentration exceeds the set upper limit, the gas path automatically switches to avoid the sensor being in a high oxygen concentration environment for a long time, thereby extending the service life of the oxygen sensor;

8. The analyzer is equipped with an original imported air pump, which works stably and has a long service life;
