MA11-4EA2813A

Product Features

1. The instrument is composed of multiple small volume oxygen analyzers;

2. The instrument is equipped with an RS485 communication port and an Ethernet interface that complies with the Modbus TCP protocol;

3. The analyzer can communicate unidirectionally or bidirectionally with the upper computer.

4. Original imported zirconia oxygen sensor with high measurement accuracy, fast response, and long lifespan;

5. Built in temperature and pressure sensor modules, pipeline pressure sensors;

6. Comes with air path blockage alarm and self-protection function. After the air path is blocked, the vacuum pump will automatically shut down, stopping the operation of the oxygen sensor, which can effectively extend the service life of the vacuum pump and sensor;

7. Modular combination allows for quick replacement of combinations without affecting the continued use of other channels;



Parameter Characteristic Application Videos

Product Introduction

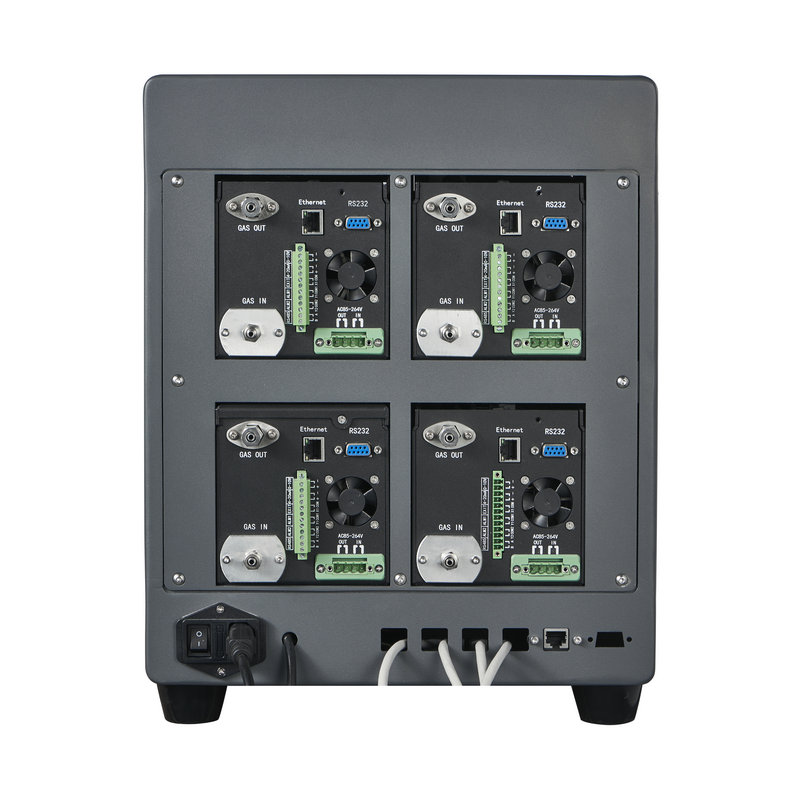

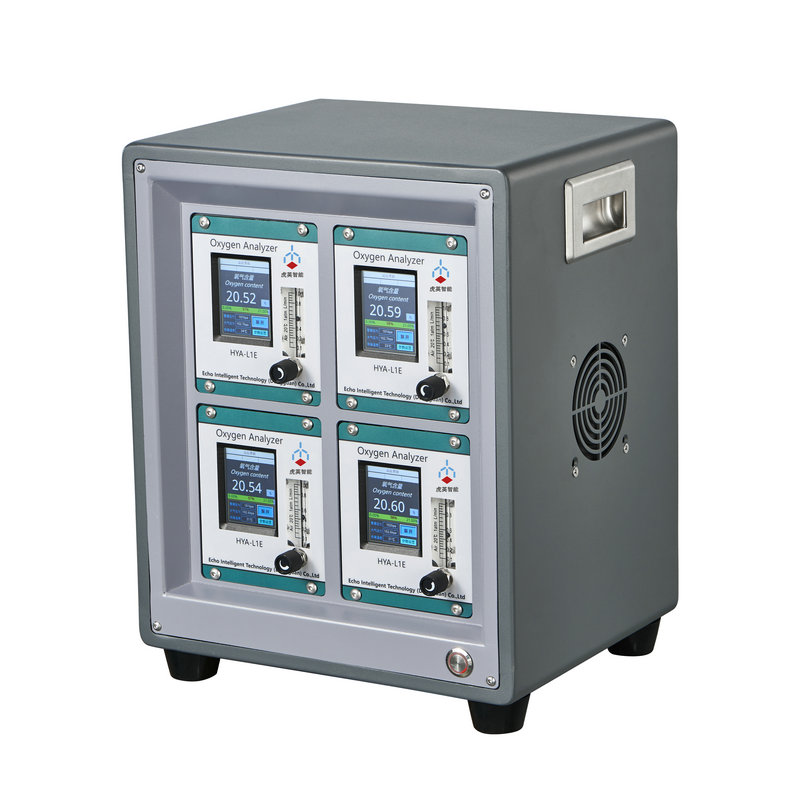

MA11-4EA2813A consists of four MA11-EA2813A oxygen analyzers, which communicate with the upper computer through Ethernet or RS485. Modular combination, each unit is independent of each other and can be quickly replaced and combined without affecting the continued use of other channels. The application is simple, flexible, and has the advantages of advanced technology, high precision, fast response, stable performance, complete functions, easy operation, and continuous gas analysis process. Widely used in atmosphere protection furnaces, reflow soldering and other equipment that require simultaneous monitoring of multiple areas.

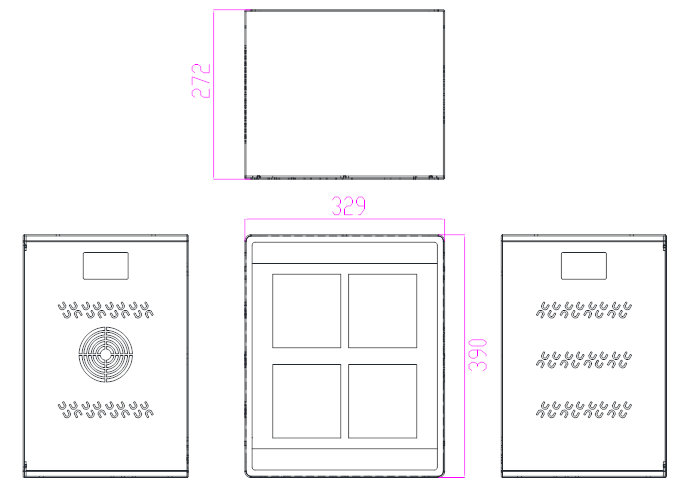

Product dimension diagram


Technical Parameter

Working principle

Zirconia

Display mode

2.8-inch touch screen

detection range

0~10/100/1000ppm/1%/21% O2



measurement accuracy

0~9.99ppm≤±5% FS



0~99.9ppm≤±2% FS



0~21%≤±1% FS

resolution

0.01% O2

repeatability

±1% FS



control output

Non-Isolated4~20mA  DC



Non-Isolated0~10V    DC



                                      2-channel programmable relay alarm output (maximum load 5A)

Communication mode

RS485,Ethernet

Working power supply

AC85~264V 50/60Hz

Environmental temperature and humidity

-5℃~+50℃,<80% RH

Sample gas temperature

-10℃~+50℃

Sampling method

Suction type

Sample gas flow rate

0.2~0.6L/min

Sample gas pressure

Micro positive pressure, micro negative pressure or positive pressure

background gas

Mixed gas of nitrogen, inert gas, and oxygen

Specification and size

390mm×329mm×272mm(H×W×D)

service life

>4 years (under normal usage conditions)

Gas interface

Air inlet: Diameter 4mm inside and 6mm outside, stainless steel quick twist



Air outlet: inner diameter 2.5mm, outer diameter 4mm stainless steel quick twist

Installation method

point probe type

Product Features

1. The instrument is composed of multiple small volume oxygen analyzers;

2. The instrument is equipped with an RS485 communication port and an Ethernet interface that complies with the Modbus TCP protocol;

3. The analyzer can communicate unidirectionally or bidirectionally with the upper computer.

4. Original imported zirconia oxygen sensor with high measurement accuracy, fast response, and long lifespan;

5. Built in temperature and pressure sensor modules, pipeline pressure sensors;

6. Comes with air path blockage alarm and self-protection function. After the air path is blocked, the vacuum pump will automatically shut down, stopping the operation of the oxygen sensor, which can effectively extend the service life of the vacuum pump and sensor;

7. Modular combination allows for quick replacement of combinations without affecting the continued use of other channels;


这里填写应用领域
